Membrana do WALBRO D10-WAT ZAMIENNIK

Informacje ogólne:

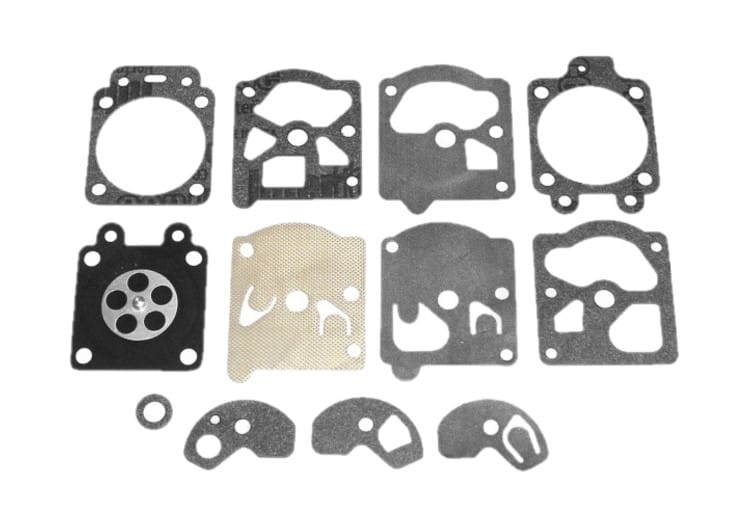

Zestaw membran gaźnika

Parametry:

D10-WAT  ZAMIENNIK

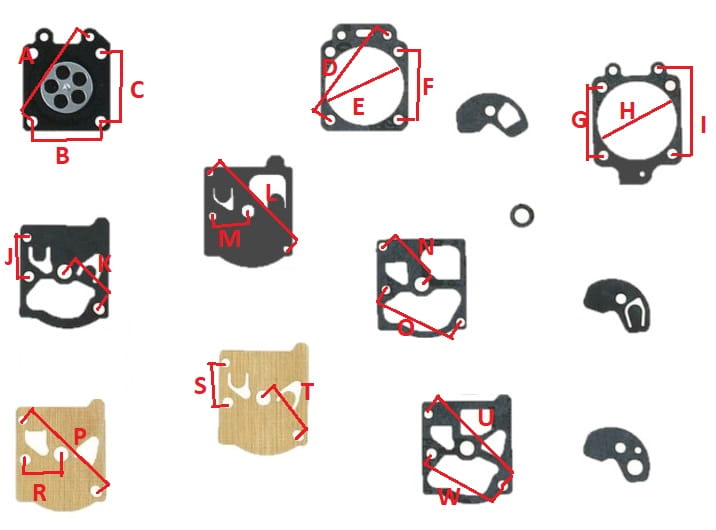

Wymiary:

A ~ 32 mm

B ~ 22 mm

C ~ 22 mm

D ~ 32 mm

E ~ 25 mm

F ~ 22 mm

G ~ 22 mm

H ~ 25 mm

I ~ 28 mm

J ~ 13 mm

K ~ 16,4 mm

L ~ 34,0 mm

M ~ 12 mm

N ~ 17,5 mm

O ~ 26 mm

P ~ 33,5 mm

R ~ 12 mm

S ~ 13 mm

T ~ 17 mm

U ~ 33 mm

W ~ 25,5 mm

Pasuje do:

Gaźników WALBRO:

WA-1, WA-101, WA-102, WA-103, WA-105, WA-106, WA-107, WA-108, WA-110, WA-111, WA-112, WA-113, WA-114, WA-115, WA-118, WA-12, WA-120, WA-121, WA-123, WA-124, WA-125, WA-126, WA-127, WA-128, WA-130, WA-131, WA-132, WA-133, WA-134, WA-135, WA-136, WA-137, WA-138, WA-139, WA-140, WA-141, WA-142, WA-143, WA-144, WA-145, WA-146, WA-148, WA-149, WA-150, WA-151, WA-153, WA-154, WA-155, WA-157, WA-158, WA-159, WA-160, WA-161, WA-162, WA-163, WA-164, WA-165, WA-166, WA-167, WA-168, WA-169, WA-170, WA-171, WA-173, WA-174, WA-175, WA-176, WA-177, WA-178, WA-179, WA-18, WA-180, WA-181, WA-182, WA-183, WA-184, WA-185, WA-186, WA-187, WA-188, WA-189, WA-19, WA-190, WA-191, WA-192, WA-193, WA-194, WA-195, WA-196, WA-197, WA-199, WA-2, WA-200, WA-201, WA-202, WA-203, WA-204, WA-205, WA-206, WA-207, WA-208, WA-209, WA-21, WA-210, WA-212, WA-213, WA-22, WA-222, WA-230-1, WA-25, WA-27, WA-28, WA-32, WA-33, WA-34, WA-38, WA-39, WA-40, WA-42, WA-44, WA-45, WA-46, WA-49, WA-5, WA-50, WA-51, WA-52, WA-53, WA-54, WA-55, WA-56, WA-58, WA-59, WA-59R, WA-62, WA-63, WA-64, WA-65, WA-66, WA-68, WA-7, WA-72, WA-73, WA-74, WA-75, WA-78, WA-79, WA-8, WA-80, WA-81, WA-82, WA-83, WA-84, WA-85, WA-86, WA-87, WA-89, WA-90, WA-91, WA-92, WA-93, WA-94, WA-95, WA-96, WA-97, WA-98, WA-99, WT-1, WT-10, WT-101, WT-102, WT-103, WT-104, WT-105, WT-106, WT-107, WT-108, WT-109, WT-11, WT-111, WT-112, WT-113, WT-114A, WT-115, WT-116, WT-117, WT-118, WT-119C, WT-12, WT-120A, WT-123, WT-124A, WT-125, WT-126, WT-127B, WT-13, WT-130, WT-131, WT-133, WT-134, WT-135, WT-137, WT-138, WT-139, WT-14, WT-140, WT-141, WT-142, WT-143, WT-144, WT-145, WT-146, WT-147, WT-148, WT-149, WT-150, WT-152, WT-153, WT-156, WT-157, WT-158, WT-159, WT-15A, WT-161, WT-162, WT-165, WT-166A, WT-167, WT-168A, WT-169, WT-16B, WT-170, WT-171, WT-172, WT-173, WT-174, WT-175, WT-176, WT-177, WT-178, WT-179, WT-17A, WT-17D, WT-18, WT-180, WT-181, WT-182, WT-183, WT-184, WT-185, WT-186A, WT-187, WT-188, WT-189B, WT-190, WT-191, WT-192, WT-194, WT-198, WT-199, WT-19A, WT-2, WT-20, WT-200A, WT-201A, WT-202, WT-204, WT-205, WT-206, WT-208, WT-209, WT-210, WT-212, WT-213, WT-214, WT-215, WT-216, WT-217, WT-218, WT-219, WT-22, WT-220, WT-221, WT-223, WT-224, WT-225, WT-226, WT-227, WT-228, WT-228R, WT-229, WT-230, WT-231A, WT-232, WT-233, WT-234, WT-235, WT-236, WT-237, WT-239, WT-24, WT-242, WT-243, WT-244, WT-245, WT-246A, WT-247, WT-248, WT-249A, WT-25, WT-250, WT-251, WT-252, WT-253, WT-254, WT-255, WT-257, WT-258, WT-259, WT-26, WT-260, WT-261, WT-262, WT-264, WT-265, WT-266, WT-267, WT-270, WT-271, WT-272, WT-275, WT-276, WT-277, WT-278, WT-279, WT-280, WT-281, WT-282, WT-283, WT-284, WT-285, WT-286, WT-287, WT-288, WT-289, WT-29, WT-290, WT-291, WT-292, WT-298, WT-299, WT-3, WT-300, WT-301, WT-302, WT-304, WT-306, WT-307, WT-309, WT-310, WT-311, WT-312, WT-313, WT-317, WT-318, WT-319, WT-321, WT-322, WT-323, WT-324, WT-325, WT-327, WT-329, WT-33, WT-330, WT-331, WT-332, WT-334, WT-336A, WT-337, WT-338, WT-339, WT-341, WT-345, WT-347, WT-348, WT-349, WT-34A, WT-350, WT-352, WT-353, WT-356, WT-357, WT-358, WT-35A, WT-360, WT-361, WT-362, WT-364, WT-366, WT-367, WT-368, WT-369, WT-37, WT-370, WT-371, WT-372, WT-373, WT-374, WT-375, WT-378, WT-379, WT-380, WT-381, WT-382, WT-383, WT-384, WT-385, WT-387, WT-388, WT-38B, WT-390, WT-393, WT-395, WT-396, WT-397, WT-398, WT-399, WT-39A, WT-40, WT-400, WT-401, WT-402, WT-404, WT-405, WT-406, WT-407, WT-408, WT-409, WT-410, WT-412, WT-413, WT-414, WT-416, WT-417, WT-418, WT-419, WT-41A, WT-42, WT-420, WT-421, WT-422, WT-423, WT-428, WT-429, WT-431, WT-432, WT-433, WT-434, WT-437, WT-438, WT-439, WT-44, WT-440, WT-444, WT-445, WT-446, WT-447, WT-449, WT-450, WT-451, WT-453, WT-454, WT-455, WT-456, WT-457, WT-45A, WT-462, WT-463, WT-465, WT-466, WT-467, WT-46A, WT-47, WT-474, WT-478, WT-48, WT-480, WT-484, WT-486, WT-487, WT-488, WT-49, WT-493, WT-494, WT-496, WT-498, WT-499, WT-50, WT-503, WT-504, WT-505, WT-506, WT-507, WT-508, WT-509, WT-51, WT-513, WT-515, WT-516, WT-517, WT-52, WT-521, WT-529, WT-53, WT-532, WT-533, WT-536, WT-540, WT-542, WT-547, WT-55, WT-555, WT-56A, WT-57, WT-58, WT-588, WT-589, WT-59, WT-591, WT-593, WT-598, WT-6, WT-600, WT-603, WT-604, WT-605, WT-61B, WT-62, WT-63, WT-64, WT-65, WT-66, WT-67, WT-68, WT-69, WT-70, WT-71A, WT-72, WT-73, WT-74, WT-76A, WT-77, WT-78, WT-79, WT-8, WT-80A, WT-81, WT-82, WT-83, WT-84, WT-85, WT-86, WT-87, WT-88A, WT-89, WT-9, WT-93, WT-94, WT-95, WT-96, WT-97, WT-98, WT-99, WT4A,

Pasuje do urządzeń z wyżej wymienionym modelem gaźnika:

• Alpina: P460, P510;

• Dolmar: 100, 102, 103, 105, 108, 109, 110, 111, 115, 300, 340, 400, BC210/212, LT210, LT250, SD100, BC330, BC400, Farmer, BC250, BC400, Farmer, PS 340, PS 400, PS 410;

• Echo: SRM-4605, SRM400AE, HC210E, PB210E, SRM310, PB4500, CS451, 452, HC160, 160A, CS400, 401, CS301, CS381, CS3900, CS3000, CS4400, CSV3400, CSV4000, SRM3100, SRM3400, SRM3800, PB400E, PB2400, SRM3800, SRM4600, CS3000, CS3400, CS3450;

• Efco: EMAK JET220/260, JET300, JET 400, 931,

• Homelite: ST100, CSP 3314, HT17, 245, AP-125, HB100, HB180, HB680, 220, 240, 250, 300, 330, 330, 25, 33, 38, BP250, BX90, HBC38, ST80, ST155, 240HG, 240SL, 245, 290, 340, BP250, HB380, HB480, HB680, ST155;

• Husqvarna: 40, 45, 240 RX, 245R, 232R, 235R, 16R, Rancher 50, 51, 55, 33, 225, 232, 235R, 244RX, 34cc, 37BR, 39R, H335, H336, P400, P600, P933, P5500, R39, R40, Rancher 40, H40, HR39, P40, P442, H335, 33, 360, 370, 22R, 22RL, 25R, 25RL, 232,225H, 225HT, 225R, 232R, 235R, H232, H235R, R8;

• Jonsered: EMAB 410, 420, 435, 537;

• Makita: DCS 33, DCS 400, DCS 410, DCS 430, DCS 520, DBC 340, DBC 400, DBC 4010, DBC 4510;

• McCulloch: Mac65, Mac 30A, Pro Mac38AV, PM 46, MAC 538, MAC 542, Cabrio 320, 341, 390;

• Oleo-Mac: 942A, 936, 940, 942, 946, 949, 951, 930F, 935DF;

• Partner: P500, P5000, 949, P490, P5500;

• Ryobi: PCN 3335;

• Shindaiwa: 405, 406, 415, 450, 450AV, 575, 695, E410, 445, 485, E360, E377;

• Solo: 152, 153, 636, 643, 647, 654, 4119;

• Stiga: SP 460, SP 510;

• Stihl: 021, 023, 025, 026, MS 260, 031AV, 009, 010, 011, 020, 022, 024, 031, 032, 1120, 1121, 4133, 4137, 4203, 4226, 4227, BG72/75, BR320/L, FR106, FS68/72/74/75/76/78/88/220, H20/24/31/35/, HS24/35/72/75, L24, LS65, TS220, 028AV/AVE, 1118, 020AV/AVPS, 1120, 4211, 4133, 4226 HS, 026, 1121, 1123, 4119, 1120, CS1120.
